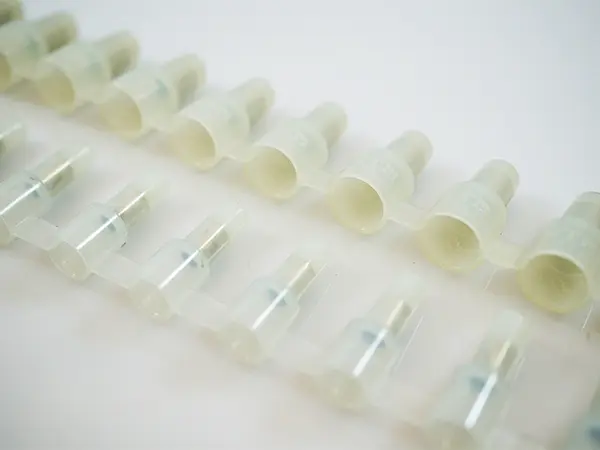

Insulated Chain Terminals (ICT) - Closed Ends
∕ Insulated Chain Terminals (ICT) - Closed Ends
Insulated Chain Terminals (ICT) - Closed Ends
(IC CE-1)
0
Package Qty: 1000
Quantity:
Add to Quote
Features
CONNECTED INSULATED TERMINAL:
Each terminal has a fixed distance which enables it to crimp continuously.
EASY CRIMP:
Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
QUALITY CRIMP:
ICT crimping gets a consistent quality crimp.
Specifications
?d:
2.4mm / 0.09"
?D:
6.7mm / 0.26"
L:
21mm / 0.83"
l:
6.2mm / 0.24"
E:
8.8mm / 0.35"
Wire Size Range for Stranded Wire (mm²):
0.5-1.75
AWG:
22-16
Material (Connector Contact):
Oxygen free copper tube (electro-tin-plated)
Material (Insulator):
Nylon
Rated Voltage:
300V
Insulator Temperature:
-40°F to 221°F / -40°C to 105°C
Applicable Applicator:
NC 14A
Standard Color:
Milky white
Standards:
UL, CSA, JIS
RoHS:
RoHS 10
