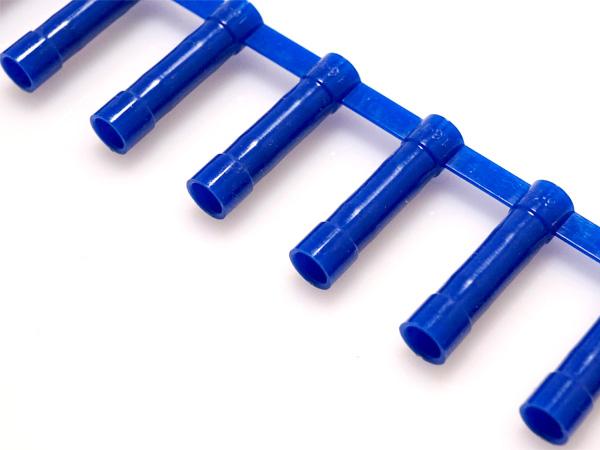

Insulated Chain Terminals (ICT) - Butts

(ICV B-2)
0
Package Qty: 1500
Quantity:

Features
  • CONNECTED INSULATED TERMINAL: Each terminal has a fixed distance which enables it to crimp continuously.
  • EASY CRIMP: Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
  • QUALITY CRIMP: ICT crimping gets a consistent quality crimp.
Specifications

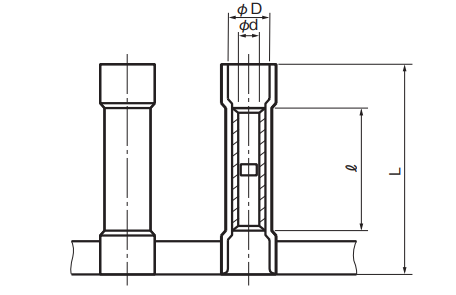

  • ød: 2.3mm / 0.09"
  • øD: 4.5mm / 0.18"
  • l: 15mm / 0.59"
  • L: 25.5mm / 1"
  • Wire Size Range for Stranded Wire (mm²): 1.04-2.63
  • AWG: 16-14
  • Material (Connector Contact): Oxygen free copper (electro-tin-plated)
  • Material (Insulator): Vinyl
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 167°F / -40°C to 75°C
  • Applicable Applicator: NC 12H
  • Standard Color: Blue
  • Standards: UL
  • RoHS: RoHS 10
