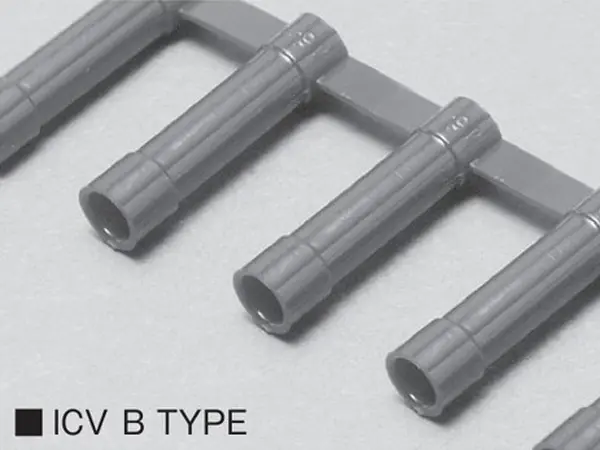

Insulated Chain Terminals (ICT) - Butts

(ICV B-1.25)

0

Package Qty: 1500

Quantity:

Features

CONNECTED INSULATED TERMINAL: Each terminal has a fixed distance which enables it to crimp continuously.
EASY CRIMP: Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
QUALITY CRIMP: ICT crimping gets a consistent quality crimp.

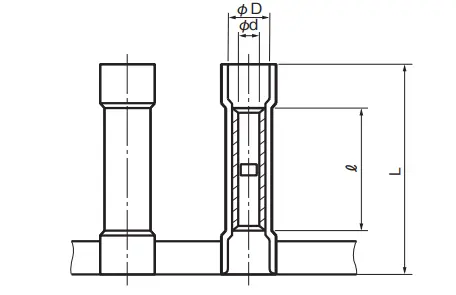

Specifications

ød: 1.8mm / 0.07"
øD: 3.8mm / 0.15"
l: 15mm / 0.59"
L: 25.5mm / 1"
Wire Size Range for Stranded Wire (mm²): 0.3-1.65
AWG: 22-16
Material (Connector Contact): Oxygen free copper (electro-tin-plated)
Material (Insulator): Vinyl
Rated Voltage: 300V
Insulator Temperature: -40°F to 167°F / -40°C to 75°C
Applicable Applicator: NC 11H
Standard Color: Red
Standards: UL
RoHS: RoHS 10
