Fully-Insulated Chain Terminals (ICT) - Female Disconnects

(ICTDN 630809-FA)

0

Package Qty: 1000

Quantity:

Features

CONNECTED INSULATED TERMINAL: Each terminal has a fixed distance which enables it to crimp continuously.
EASY CRIMP: Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
QUALITY CRIMP: ICT crimping gets a consistent quality crimp.

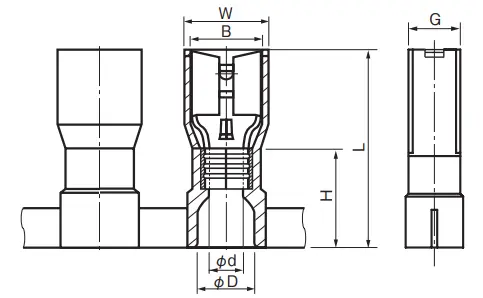

Specifications

B: 6.8mm / 0.27"
W: 8.9mm / 0.35"
L: 21mm / 0.83"
ød: 1.8mm / 0.07"
øD: 4.1mm / 0.16"
H: 9.7mm / 0.38"
G: 5.5mm / 0.22"
Mating Tab Thickness: 0.8mm / 0.03"
Wire Size Range for Stranded Wire (mm²): 0.3-1.25
AWG: 22-16
Material (Connector Contact): Brass (electro-tin-plated)
Material (Insulator): Nylon
Rated Voltage: 300V
Insulator Temperature: -40°F to 221°F / -40°C to 105°C
Standard Color: Red Translucent
Applicable Applicator: NC 11FN
Standards: UL, CSA
RoHS: RoHS 10
