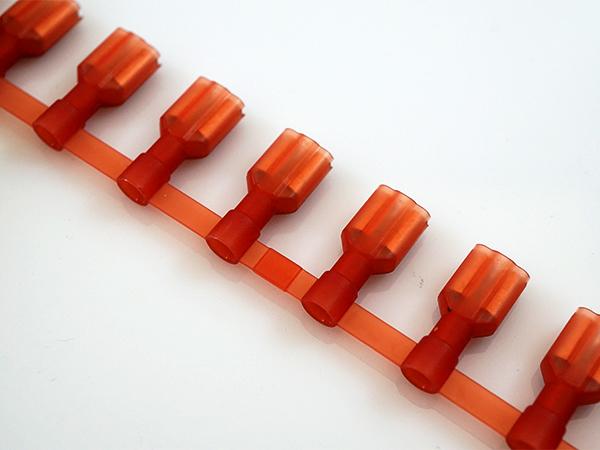

Fully-Insulated Chain Terminals (ICT) - Female Disconnects

(ICTDN 480820-FA)
489.6
Package Qty: 1500
Quantity:

Features
  • CONNECTED INSULATED TERMINAL - Each terminal has a fixed distance which enables it to crimp continuously.
  • EASY CRIMP - Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
  • QUALITY CRIMP - ICT crimping gets a consistent quality crimp.
Specifications

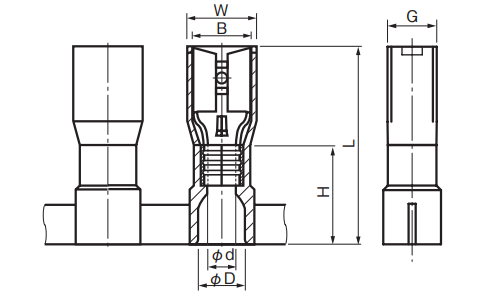

  • AWG: 16-14
  • B: 5mm / 0.2"
  • W: 7.2mm / 0.28"
  • L: 19.5mm / 0.77"
  • ød: 2.4mm / 0.09"
  • øD: 4.5mm / 0.18"
  • H: 9.8mm / 0.39"
  • G: 5.6mm / 0.22"
  • Mating Tab Thickness: 0.8mm / 0.03"
  • Wire Size Range for Stranded Wire (mm²): 1.04-2.63
  • Material (Connector Contact): Brass (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Standard Color: Blue Translucent
  • Applicable Applicator: NC 12EN
  • Standards: UL, CSA
  • RoHS: RoHS 10
