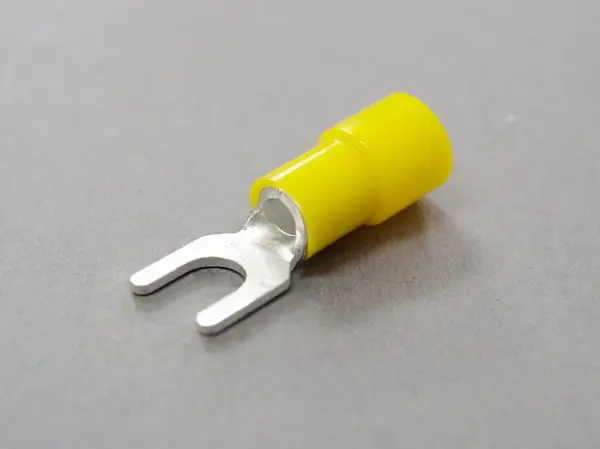

Eco-Friendly Polycarbonate Insulated Spade Terminals

(TMEX 5.5Y-5-YEL)
9.74
Package Qty: 50
Quantity:

Technical Resources
Features
  • Excellent for insulation with rated voltage of 600V
  • Temperature range: -40°F to +257°F (-40°C to +125°C)
  • Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
  • RoHS SOC 10 Compliant
  • 2 standard colors available for each size: 1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Specifications
  • Stud: 10
  • AWG: 12-10
  • d2: 5.2mm / 0.2"
  • B: 9mm / 0.35"
  • L: 25.7mm / 1.01"
  • F: 7.2mm / 0.28"
  • H: 14mm / 0.55"
  • øD: 6.8mm / 0.27"
  • Wire Size Range for Stranded Wire (mm²): 2.63-6.64
  • Applicable Hand Tools: NH 13
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 13, N3 13
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Material (Insulator): Polycarbonate
  • Rated Voltage: 600V
  • Insulator Temperature: -40°F to 257°F / -40°C to 125°C
  • Standards: UL, C-UL
  • RoHS: RoHS 10
