Insulated Terminals and Sleeves
∕
Insulated Pin Terminals
∕
Polycarbonate Insulated Pin Terminals
∕ Eco-Friendly Polycarbonate Insulated Pin Terminals

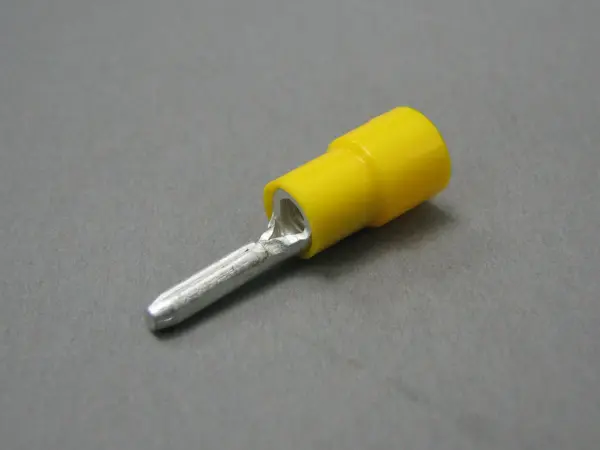

Eco-Friendly Polycarbonate Insulated Pin Terminals
(TMEX TC-5.5-11-YEL)
0
Package Qty: 50
Quantity:
Technical Resources
About TMEX
Features
Excellent for insulation with rated voltage of 600V
Temperature range:
-40°F to +257°F (-40°C to +125°C)
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
2 standard colors available for each size:
1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Specifications
AWG:
12-10
øF:
2.7mm / 0.11"
l:
11mm / 0.43"
L:
28.5mm / 1.12"
H:
14mm / 0.55"
øD:
6.8mm / 0.27"
Wire Size Range for Stranded Wire (mm²):
2.63-6.64
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
Standards:
UL, C-UL
RoHS:
RoHS 10
Applicable Hand Tools:
NH 13
Applicable Crimping Machines:
NA 10, NA 3
Applicable Dies:
N10 13, N3 13
We Also Recommend
Hand Crimping Tool [NH 13]
Pneumatic Crimpint Tool [NA 10]
Applicator for Pneumatic Crimping Tool (NA 10) [N10AP-TM]
Die for Pneumatic Crimpint Tool (NA 10) [N10-13]
Pneumatic Crimping Tool [NA 3]
Die for Pneumatic Crimping Tool (NA 3) [N3 13]
