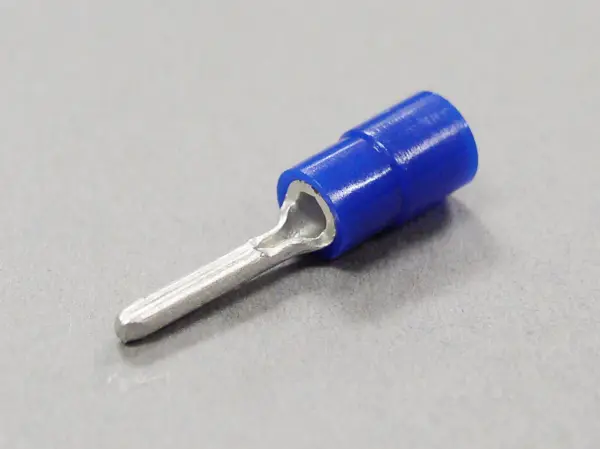

Eco-Friendly Polycarbonate Insulated Pin Terminals
(TMEX TC-2-11S-BLU)
0
Package Qty: 1000
Quantity:
Technical Resources
About TMEX
Features
Excellent for insulation with rated voltage of 600V
Temperature range:
-40°F to +257°F (-40°C to +125°C)
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
2 standard colors available for each size:
1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Specifications
AWG:
16-14
øF:
1.5mm / 0.06"
l:
11mm / 0.43"
L:
23mm / 0.91"
H:
10mm / 0.39"
øD:
4.5mm / 0.18"
Wire Size Range for Stranded Wire (mm²):
1.04-2.63
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
Standards:
UL, C-UL
RoHS:
RoHS 10
Applicable Hand Tools:
NH 12, NH 32
Applicable Crimping Machines:
NA 10, NA 3
Applicable Dies:
N10 12, N3 12
