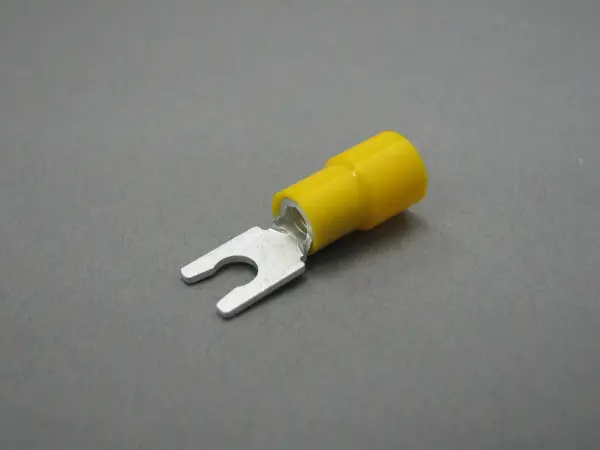

Eco-Friendly Polycarbonate Insulated Locking Spade Terminals
(TMEX 5.5LY-3.5S-YEL)
0
Package Qty: 50
Quantity:
Add to Quote
Technical Resources
About TMEX
Features
Excellent for insulation with rated voltage of 600V
Temperature range:
-40°F to +257°F (-40°C to +125°C)
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
2 standard colors available for each size:
1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)

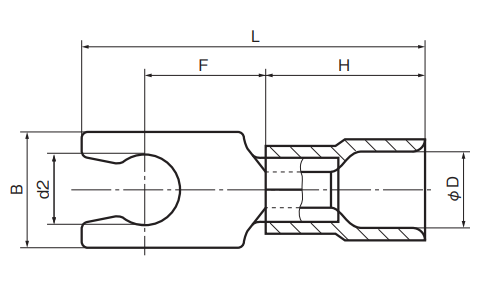

Specifications
Stud:
4
AWG:
12-10
d2:
3.7mm / 0.15"
B:
7.9mm / 0.31"
L:
25.7mm / 1.01"
F:
7.6mm / 0.3"
H:
14mm / 0.55"
øD:
6.8mm / 0.27"
Wire Size Range for Stranded Wire (mm²):
2.63-6.64
Applicable Hand Tools:
NH 13
Appicable Crimpint Machines:
NA 10, NA 3
Applicable Dies:
N10 13, N3 13
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator):
Polycarbonate
Rated Voltage:
600V
Insulator Temperature:
-40°F to 257°F / -40°C to 125°C
Standards:
UL, C-UL
RoHS:
RoHS 10
