Insulated Terminals and Sleeves
∕
Insulated Spade Terminals
∕
Polycarbonate Insulated Locking Spade Terminals
∕ Eco-Friendly Polycarbonate Insulated Locking Spade Terminals

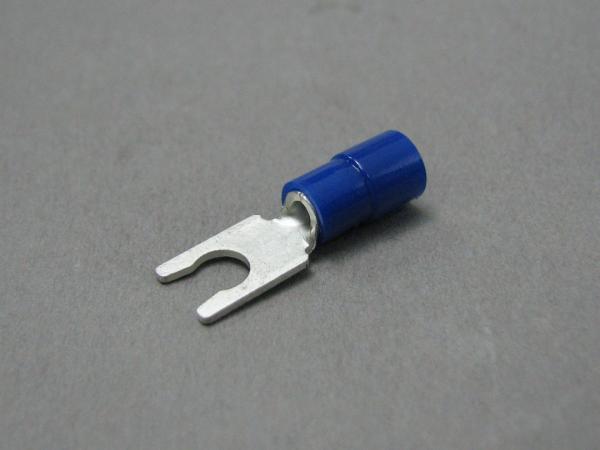

Eco-Friendly Polycarbonate Insulated Locking Spade Terminals
(TMEX 2LY-5S-BLU)
0
Package Qty: 1000
Quantity:
Add to Quote
Technical Resources
About TMEX
Features
Excellent for insulation with rated voltage of 600V
Temperature range:
-40°F to +257°F (-40°C to +125°C)
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
2 standard colors available for each size:
1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Specifications
Stud:
4
AWG:
16-14
d2:
5.3mm / 0.21"
B:
8.4mm / 0.33"
L:
22.5mm / 0.89"
F:
8.5mm / 0.33"
H:
10mm / 0.39"
øD:
4.6mm / 0.18"
Wire Size Range for Stranded Wire (mm²):
1.04-2.63
Applicable Hand Tools:
NH 12, NH 32
Appicable Crimpint Machines:
NA 10, NA 3
Applicable Dies:
N10 12, N3 12
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator):
Polycarbonate
Rated Voltage:
600V
Insulator Temperature:
-40°F to 257°F / -40°C to 125°C
Standards:
UL, C-UL
RoHS:
RoHS 10
