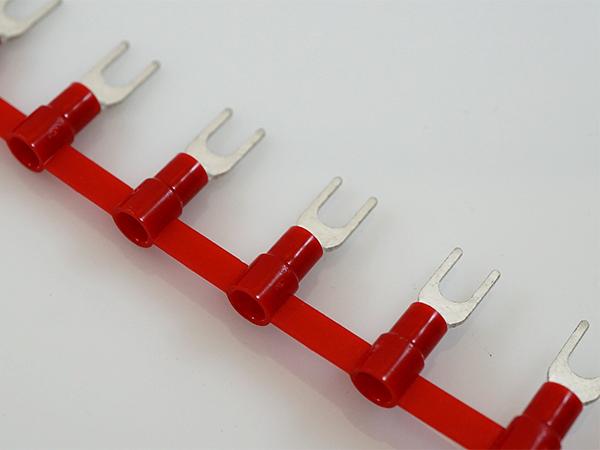

Eco-Friendly Polycarbonate Insulated Chain Terminals (ICT) - Spades

(ICTBX 5.5Y-4S)
0
Package Qty: 1000
Quantity:

Features
  • CONNECTED INSULATED TERMINAL: Each terminal has a fixed distance which enables it to crimp continuously.
  • EASY CRIMP: Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
  • QUALITY CRIMP: ICT crimping gets a consistent quality crimp.

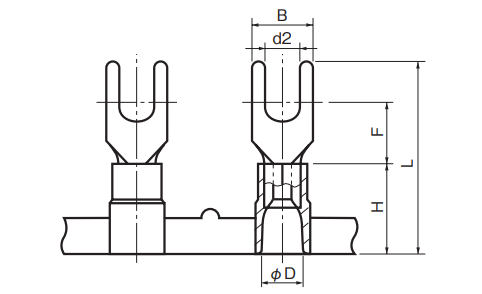

Specifications
  • ød2: 4.3mm / 0.17"
  • B: 8.4mm / 0.33"
  • L: 25.7mm / 1.01"
  • F: 7.2mm / 0.28"
  • H: 14mm / 0.55"
  • øD: 6.8mm / 0.27"
  • Wire Size Range for Stranded Wire (mm²): 2.63-4.6 (NC13A2) / 4.6-6.64 (NC13A)
  • AWG: 12, 10
  • Material (Connector Contact): Oxygen free copper (electro-tin-plated)
  • Material (Insulator): Polycarbonate
  • Rated Voltage: 600V
  • Insulator Temperature: -40°F to 257°F / -40°C to 125°C
  • Applicable Applicator: NC 13A2 / NC 13A
  • Standard Color: Yellow
  • Standards: UL, CSA
  • RoHS: RoHS 10
