Non-Insulated Terminals and Sleeves
∕
Non-Insulated Pin Terminals
∕
TC Type Pin Terminals with Insulation Cap
∕ Non-Insulated Pin Terminals with Insulation Cap - TC Type

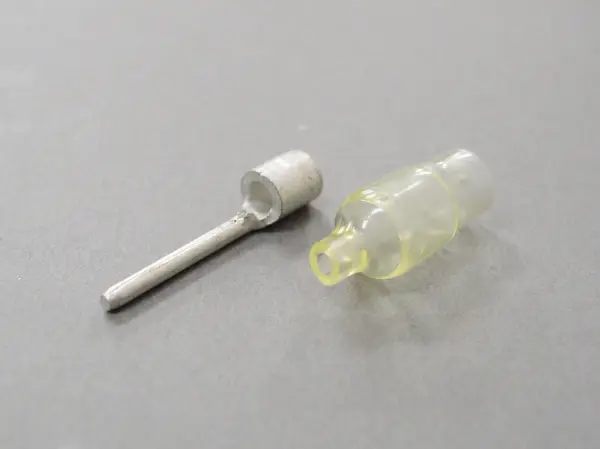

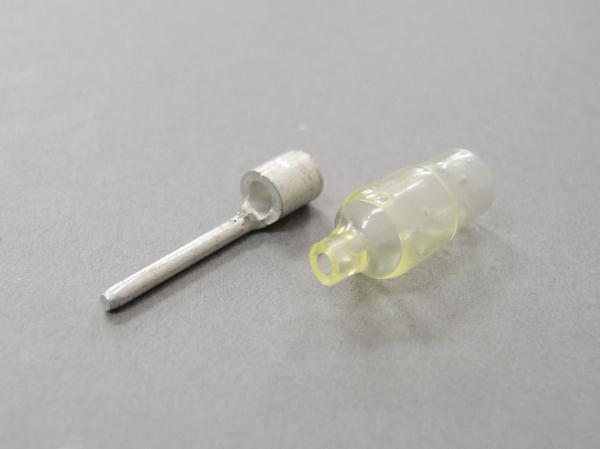

Non-Insulated Pin Terminals with Insulation Cap - TC Type
(TC 235-16S-C)
0
Package Qty: 500
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

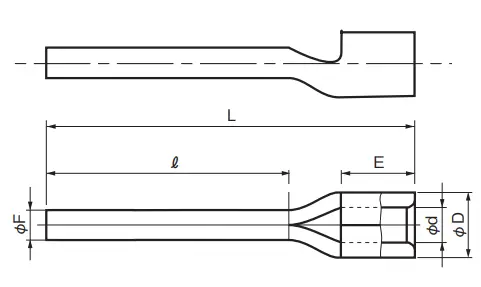

Specifications
AWG:
14-12
l:
16mm / 0.63"
L:
25mm / 0.98"
E:
6mm / 0.24"
øD:
5.6mm / 0.22"
ød:
3mm / 0.12"
øF:
1.9mm / 0.07"
Wire Size Range for Solid Wire (mm):
-
Wire Size Range for Stranded Wire (mmø|):
2.00-3.50
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
Material (Cap):
P.V.C. UL94 V-0
Rated Voltage / Current:
600V / 20A
Standards:
-
RoHS:
RoHS 10
