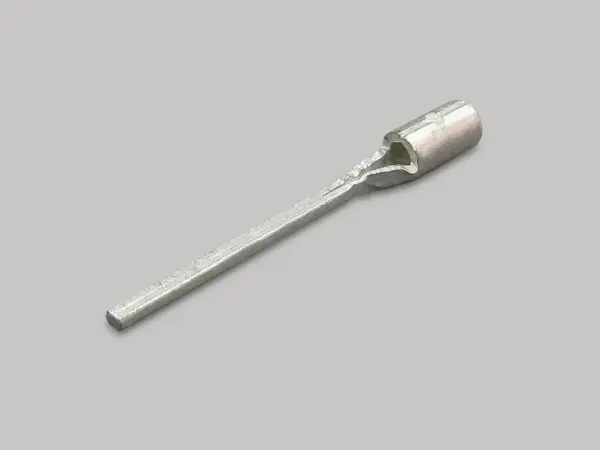

Non-Insulated Pin Terminals - TC/ST Type

(TC 0.75-13.5K-ST)
0
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • AWG: 22-18
  • l: 13.5mm / 0.53"
  • L: 21.5mm / 0.85"
  • E: 4.5mm / 0.18"
  • øD: 2.5mm / 0.1"
  • ød: 1.4mm / 0.06"
  • øF: 1.1mm x 0.7mm / 0.04" x 0.03"
  • Wire Size Range for Solid Wire (mm): -
  • Wire Size Range for Stranded Wire (mmø|): 0.30-0.75
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • Rated Voltage / Current: -
  • Standards: UL
  • RoHS: RoHS 10
