Non-Insulated Piggyback Disconnect Terminals w/Copper Sleeve on Barrel

(DS 630820-V)
0
Package Qty: 1
Quantity:

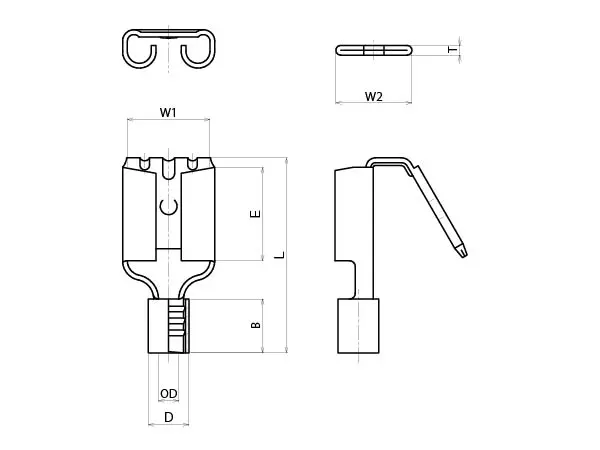

Specifications
  • AWG: 16-14
  • Mating Tab: 0.250" x 0.032"
  • L: 0.650"
  • W1: 0.272"
  • W2: 0.250"
  • T: 0.32"
  • E1: 0.307"
  • E2: 0.315"
  • B: 0.177"
  • OD: 0.130"
  • D: 0.161"
  • Material (Connector Contact): Brass
