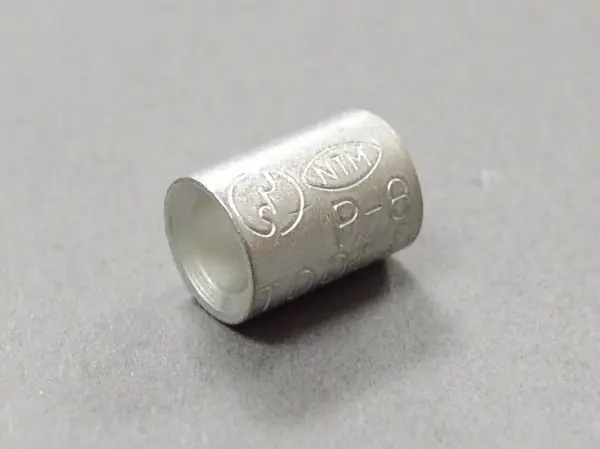

Non-Insulated Parallel Connectors - P Type

(P 8)
20.55
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • AWG: 8
  • L: 9.5mm / 0.37"
  • ⌀D: 7mm / 0.28"
  • ⌀d: 4.5mm / 0.18"
  • Wire Size Range for Stranded Wire (mm²): 6.64-10.52
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA, JIS
