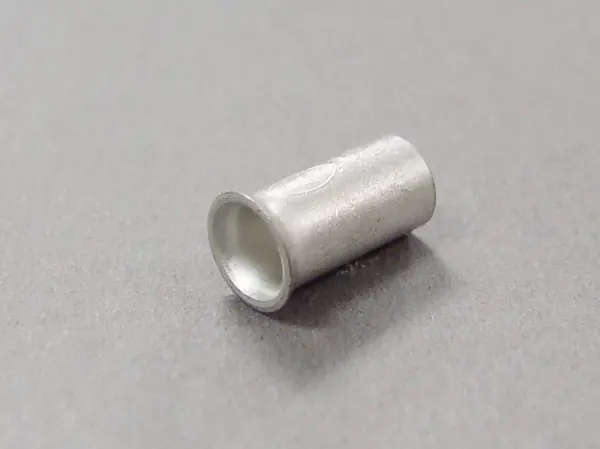

Non-Insulated Open-End Connectors - E Type

(E-S)
0
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • AWG: -
  • øD: 5mm / 0.2"
  • ød: 4mm / 0.16"
  • t: 0.5mm / 0.02"
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: JIS
  • Rated Current: 20A
