Home ∕ Non-Insulated Terminals and Sleeves ∕ Non-Insulated Butt & Parallel Connectors ∕ E Type Open End Connectors ∕ Non-Insulated Open-End Connectors - E Type

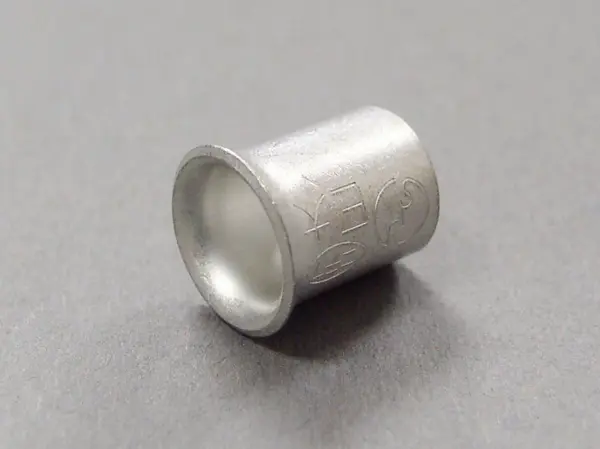

Non-Insulated Open-End Connectors - E Type

(E-L)
20.86
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • AWG: -
  • øD: 7.7mm / 0.3"
  • ød: 6.1mm / 0.24"
  • t: 0.8mm / 0.03"
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: JIS
  • Rated Current: 30A
