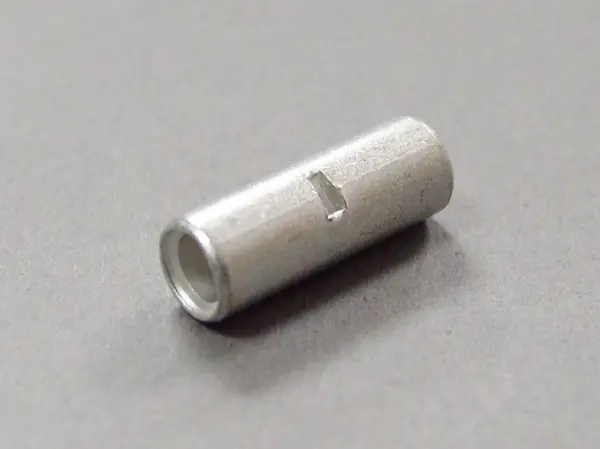

Non-Insulated Butt Connectors - B Type

(B 5.5)
20.42
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • AWG: 10-12
  • øD: 5.4mm / 0.21"
  • ød: 3.5mm / 0.14"
  • Wire Size Range for Solid Wire (mm): 1.82-2.89
  • Wire Size Range for Stranded Wire (mmø|): 2.63-6.64
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA, JIS
