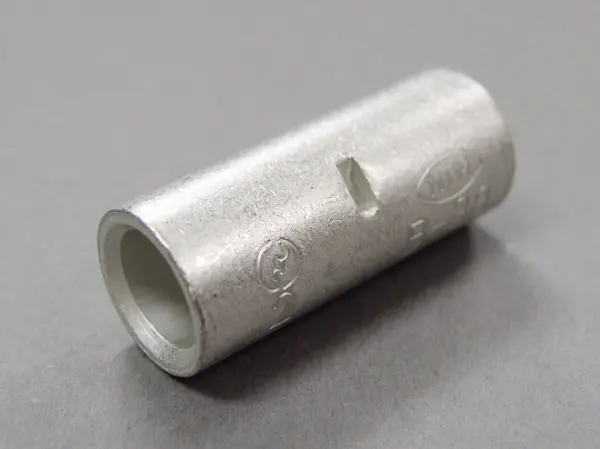

Non-Insulated Butt Connectors - B Type

(B 38)
160.05
Package Qty: 100
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • AWG: 2
  • L: 32mm / 1.26"
  • ⌀D: 13.2mm / 0.52"
  • ⌀d: 9.4mm / 0.37"
  • Wire Size Range for Solid Wire (mm): -
  • Wire Size Range for Stranded Wire (mm²): 26.66-42.42
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA, JIS
