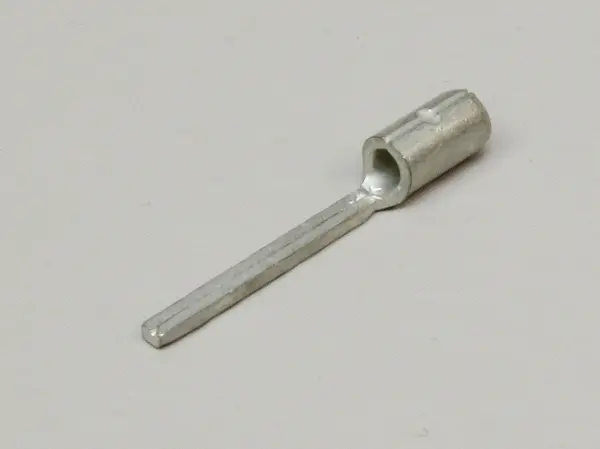

Non-Insulated Blade Terminals - BT Type Miniature

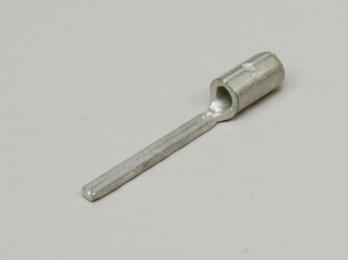

(BT 0.75-11)

9.04

Package Qty: 1000

Quantity:

Features

MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

Specifications

AWG: 22-18
B: 1.2mm / 0.05"
t: 0.7mm / 0.03"
L: 16.8mm / 0.66"
G: 11mm / 0.43"
E: 4.5mm / 0.18"
øD: 2.5mm / 0.1"
ød: 1.4mm / 0.06"
Wire Size Range for Solid Wire (mm): -
Wire Size Range for Stranded Wire (mmø|): 0.30-0.75
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
RoHS: RoHS 10
Standards: UL
