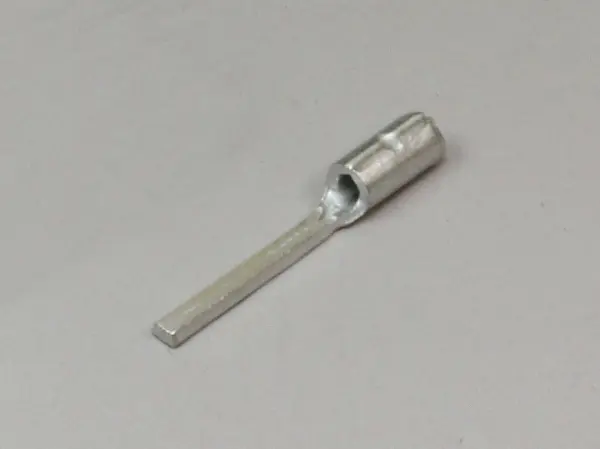

Non-Insulated Blade Terminals - BT Type Miniature

(BT 0.3-9)
0
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

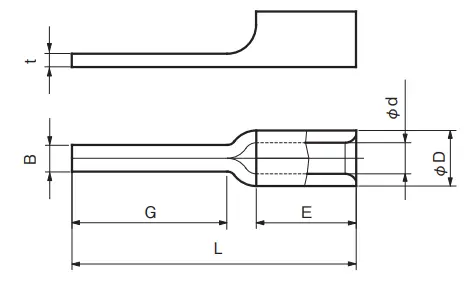

Specifications
  • AWG: 24-20
  • B: 1.2mm / 0.05"
  • t: 0.7mm / 0.03"
  • L: 14.7mm / 0.58"
  • G: 9mm / 0.35"
  • E: 4.5mm / 0.18"
  • øD: 2.2mm / 0.09"
  • ød: 1mm / 0.04"
  • Wire Size Range for Solid Wire (mm): -
  • Wire Size Range for Stranded Wire (mmø|): 0.20-0.50
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: -
