Non-Insulated Ring Terminals - Square

(200-D-12)
0
Package Qty: 10
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications

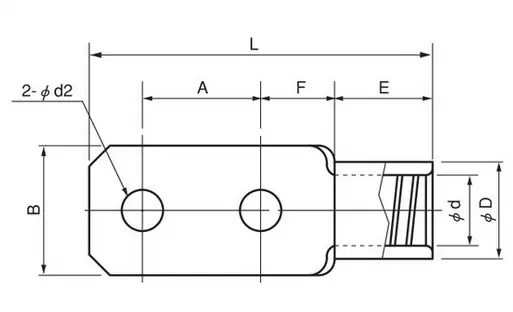

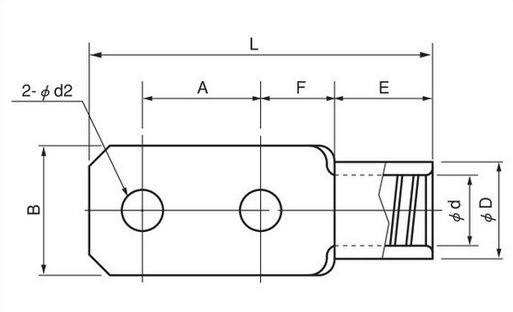

  • Stud: 1/2"
  • AWG: 400 MCM
  • B: 44mm / 1.73"
  • L: 116.2mm / 4.57"
  • A: 40mm / 1.57"
  • F: 25mm / 0.98"
  • E: 33.2mm / 1.31"
  • øD: 32.9mm / 1.3"
  • ød: 24mm / 0.94"
  • ød2: 14mm / 0.55"
  • Wire Size Range for Stranded Wire (mmø|): 192.60-242.27
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
