Non-Insulated Ring Terminals - Square

(CB 150-8)
8.0741
Package Qty: 20
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

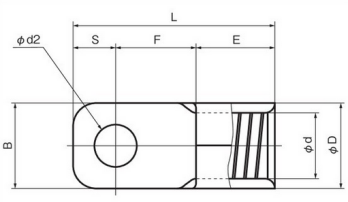

Specifications
  • Stud: 5/16"
  • AWG: 250-300 MCM
  • B: 22mm / 0.87"
  • L: 60.3mm / 2.37"
  • S: 11mm / 0.43"
  • F: 22.3mm / 0.88"
  • E: 27mm / 1.06"
  • ⌀D: 26.6mm / 1.05"
  • ⌀d: 19.5mm / 0.77"
  • ⌀d2: 8.4mm / 0.33"
  • Wire Size Range for Stranded Wire (mm²): 117.20-152.05
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: JEMA
