Home
∕
Non-Insulated Terminals and Sleeves
∕
Non-Insulated Ring Terminals
∕
Square Ring Terminals
∕ Non-Insulated Ring Terminals - Square

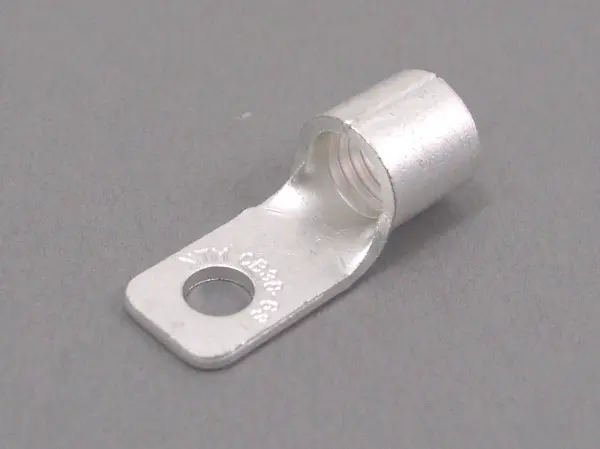

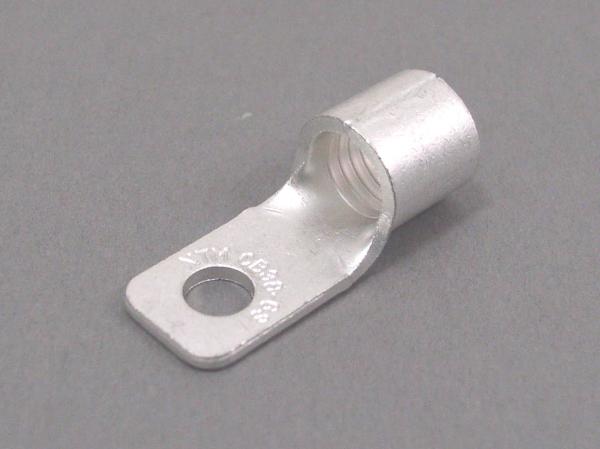

Non-Insulated Ring Terminals - Square
(CB 80-12S)
3.9059
Package Qty: 50
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
Stud:
1/2"
AWG:
3/0
B:
22mm / 0.87"
L:
49mm / 1.93"
S:
10mm / 0.39"
F:
20mm / 0.79"
E:
19mm / 0.75"
øD:
19.6mm / 0.77"
ød:
14.5mm / 0.57"
ød2:
13mm / 0.51"
Wire Size Range for Stranded Wire (mmø|):
76.28-96.30
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
RoHS:
RoHS 10
