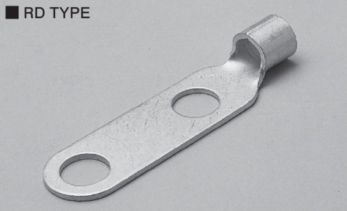

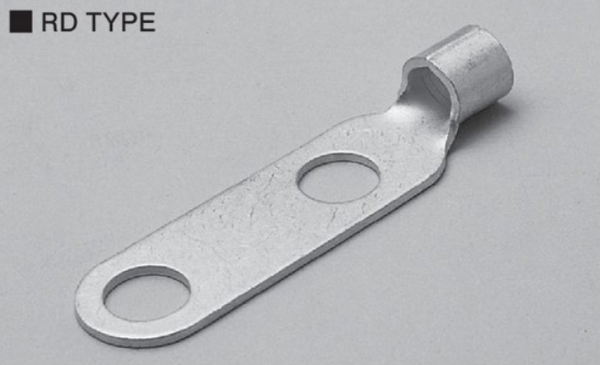

Non-Insulated Ring Terminals - RD Type (Double-Hole)

(RD 180-12)
0
Package Qty: 10
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 1/2"
  • AWG: 300-350 MCM
  • B: 38.5mm / 1.52"
  • L: 111mm / 4.37"
  • A: 40mm / 1.57"
  • F: 22.05mm / 0.87"
  • E: 29.7mm / 1.17"
  • øD: 28.5mm / 1.12"
  • ød: 20.2mm / 0.8"
  • ød2: 14mm / 0.55"
  • Wire Size Range for Stranded Wire (mmø|): 152.05-192.60
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
