∕ Non-Insulated Ring Terminals - RD Type (Double-Hole)

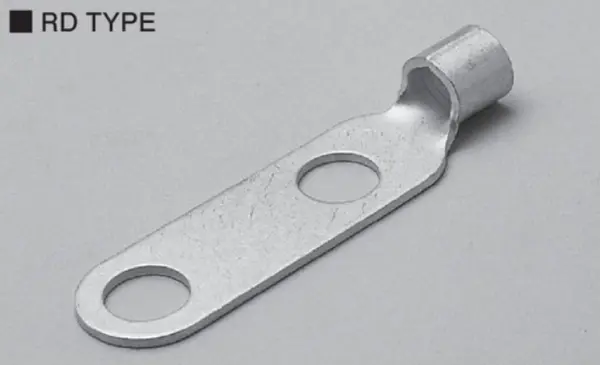

Non-Insulated Ring Terminals - RD Type (Double-Hole)
(RD 100-10)
0
Package Qty: 20
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

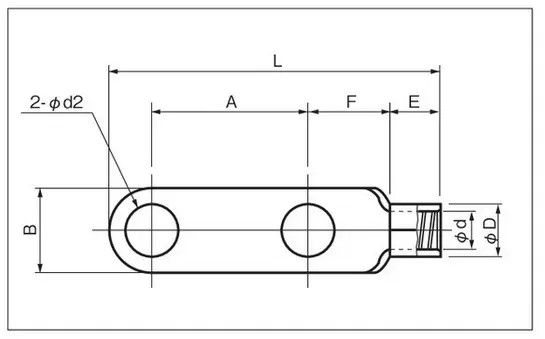

Specifications
Stud:
3/8"
AWG:
4/0
B:
28.5mm / 1.12"
L:
87mm / 3.43"
A:
32mm / 1.26"
F:
21.75mm / 0.86"
E:
19mm / 0.75"
øD:
22.5mm / 0.89"
ød:
16.4mm / 0.65"
ød2:
11mm / 0.43"
Wire Size Range for Stranded Wire (mmø|):
96.30-117.20
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
RoHS:
RoHS 10
Standards:
UL, CSA, JIS
