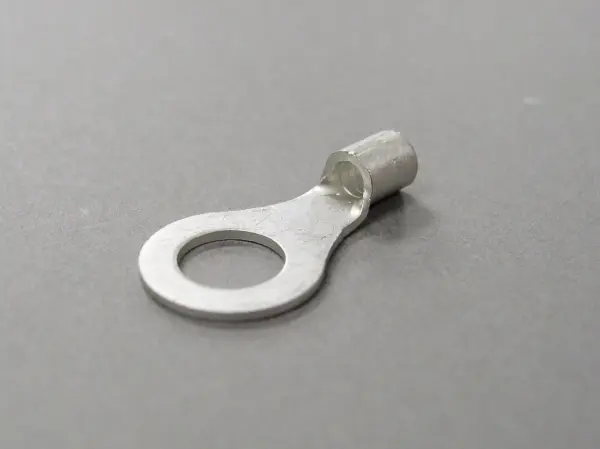

Non-Insulated Ring Terminals - R Type

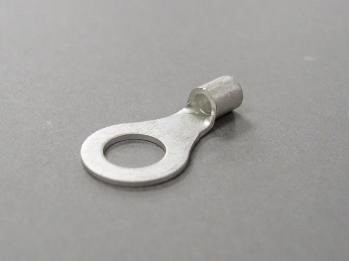

(R 5.5-8)
23.02
Package Qty: 1000
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
Stud:
5/16"
AWG:
12-10
B:
15mm / 0.59"
L:
28mm / 1.1"
F:
14mm / 0.55"
E:
6.5mm / 0.26"
øD:
5.6mm / 0.22"
ød:
3.4mm / 0.13"
ød2:
8.4mm / 0.33"
Wire Size Range for Solid Wire (mm):
1.82-2.89
Wire Size Range for Stranded Wire (mmø|):
2.63-6.64
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
RoHS:
RoHS 10
Standards:
UL, CSA, JIS
