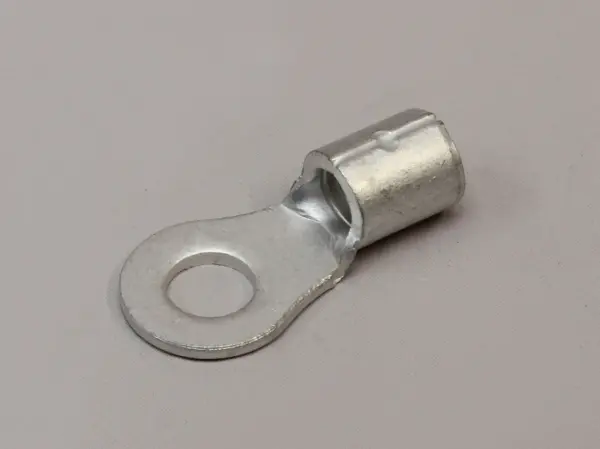

Non-Insulated Ring Terminals - R Type

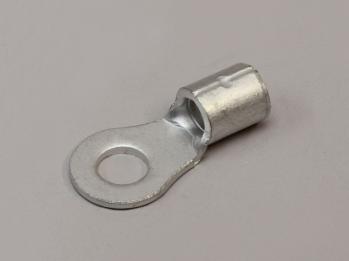

(R 5.5-4S)
16.24
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: #8
  • AWG: 12-10
  • B: 9mm / 0.35"
  • L: 18.2mm / 0.72"
  • F: 7.2mm / 0.28"
  • E: 6.5mm / 0.26"
  • øD: 5.6mm / 0.22"
  • ød: 3.4mm / 0.13"
  • ød2: 4.3mm / 0.17"
  • Wire Size Range for Solid Wire (mm): 1.82-2.89
  • Wire Size Range for Stranded Wire (mmø|): 2.63-6.64
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
