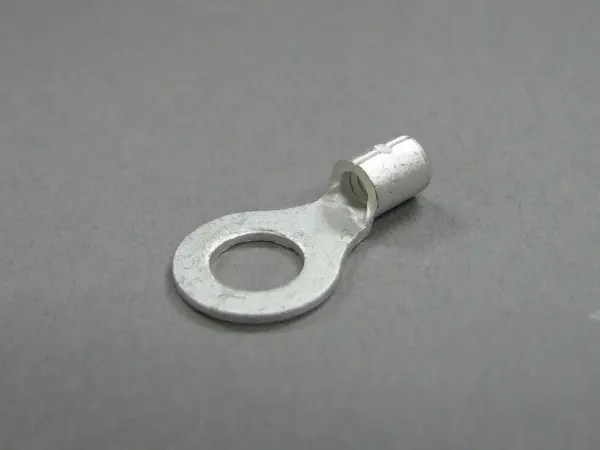

Non-Insulated Ring Terminals - R Type

(R 3.5-6L)
17.12
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 1/4"
  • AWG: 12
  • B: 12mm / 0.47"
  • L: 21.4mm / 0.84"
  • F: 9.4mm / 0.37"
  • E: 6mm / 0.24"
  • øD: 5.1mm / 0.2"
  • ød: 3mm / 0.12"
  • ød2: 6.4mm / 0.25"
  • Wire Size Range for Solid Wire (mm): 1.82-2.40
  • Wire Size Range for Stranded Wire (mmø|): 2.63-4.60
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
