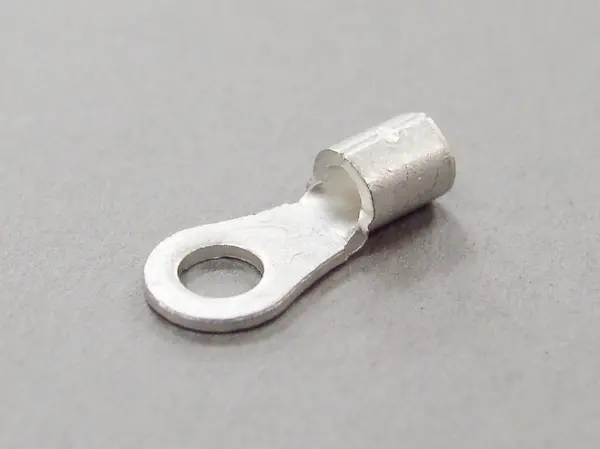

Non-Insulated Ring Terminals - R Type

(R 3.5-4)

15.4

Package Qty: 1000

Quantity:

Features

MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

Specifications

Stud: #8
AWG: 12
B: 8mm / 0.31"
L: 18mm / 0.71"
F: 8mm / 0.31"
E: 6mm / 0.24"
øD: 5.1mm / 0.2"
ød: 3mm / 0.12"
ød2: 4.3mm / 0.17"
Wire Size Range for Solid Wire (mm): 1.82-2.40
Wire Size Range for Stranded Wire (mmø|): 2.63-4.60
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
RoHS: RoHS 10
Standards: UL, CSA
