Non-Insulated Terminals and Sleeves
∕
Non-Insulated Ring Terminals
∕
R Type Ring Terminals
∕ Non-Insulated Ring Terminals - R Type

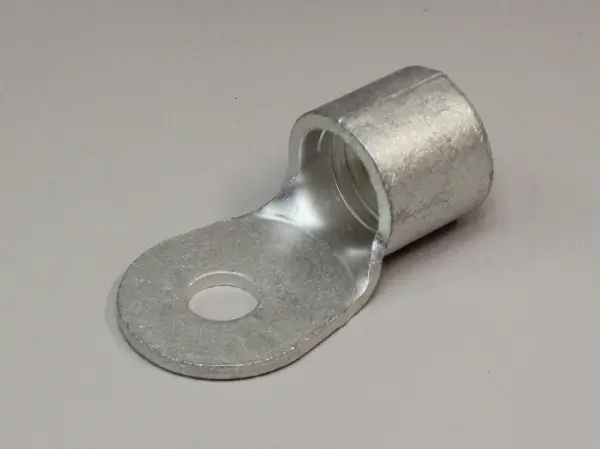

Non-Insulated Ring Terminals - R Type
(R 100-8)
4.5963
Package Qty: 50
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
Stud:
5/16"
AWG:
4/0
B:
28.5mm / 1.12"
L:
53.5mm / 2.11"
F:
20.25mm / 0.8"
E:
19mm / 0.75"
øD:
22.5mm / 0.89"
ød:
16.4mm / 0.65"
ød2:
8.4mm / 0.33"
Wire Size Range for Stranded Wire (mmø|):
96.30-117.20
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
RoHS:
RoHS 10
Standards:
UL, CSA
