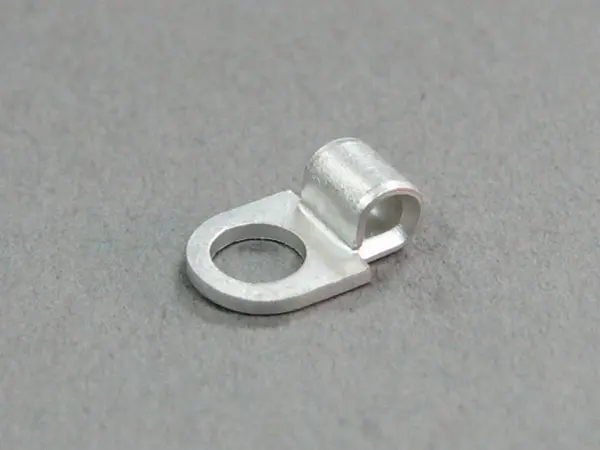

Non-Insulated Ring Terminals - Flag Ring

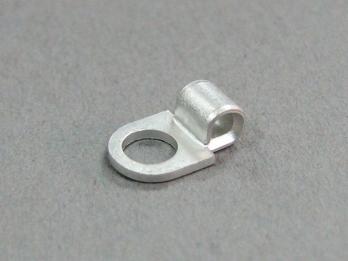

(FT 1-3)
0
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

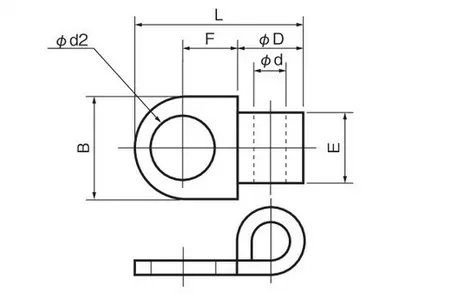

Specifications
  • Stud: #6
  • AWG: 22-16
  • B: 6mm / 0.24"
  • L: 9.4mm / 0.37"
  • F: #VALUE!
  • E: 4mm / 0.16"
  • øD: 3.4mm / 0.13"
  • ød: 1.7mm / 0.07"
  • ød2: 3.6mm / 0.14"
  • Wire Size Range for Stranded Wire (mmø|): 0.25-1.65
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
