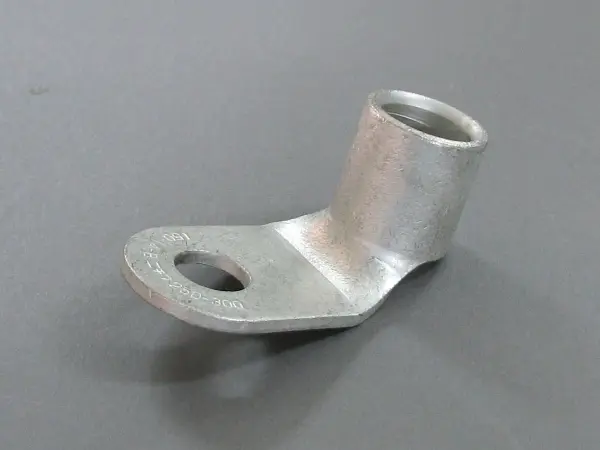

Non-Insulated Ring Terminals - 90 Degree Bent
(R 150-14-B)
0
Package Qty: 20
Quantity:
Add to Quote
Features
MATERIAL:
Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT:
Please click here to see the amperage rating table for insulated wires.
STANDARDS:
UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

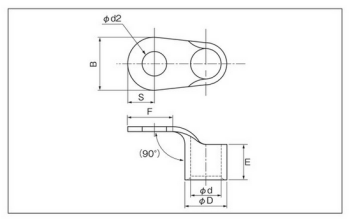

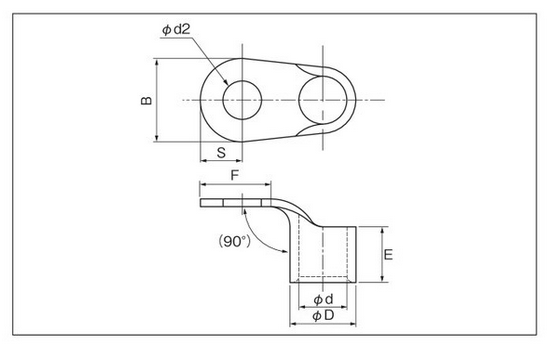

Specifications
Stud:
9/16"
AWG:
250-300 MCM
B:
36mm / 1.42"
S:
18mm / 0.71"
F (MIN):
43mm / 1.69"
E:
27mm / 1.06"
øD:
26.6mm / 1.05"
ød:
19.5mm / 0.77"
ød2:
15mm / 0.59"
Wire Size Range for Stranded Wire (mmø|):
117.20-152.05
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
RoHS:
RoHS 10
Standards:
UL
