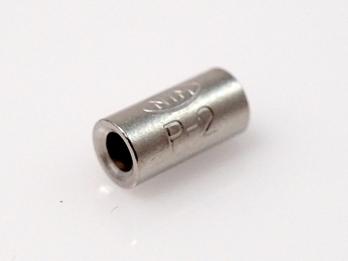

High-Temp Parallel Connectors - HCP Type

(HCP 1.25)
0
Package Qty: 1000
Quantity:

Specifications
  • AWG: 22-16
  • øD: 3.3mm / 0.13"
  • ød: 1.8mm / 0.07"
  • Wire Size Range for Stranded Wire (mmø|): 0.25-1.65
  • Material (Connector Contact): Nickel plated on copper (320F° / 160C° max)
  • RoHS: RoHS 10
  • Standards: UL, CSA
