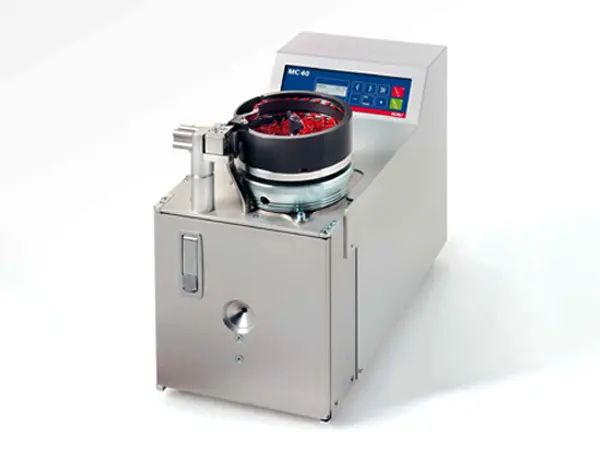

Ferrule Stripping and Crimping Machine for Loose Ferrules

(MC 40-1)
0
Package Qty: 1
Quantity:

Features
  • One-step stripping and crimping for maximum productivity
  • Cycle time as fast as 0.8 seconds (Speed-Up mode)
  • No reel-fed terminals required – processes loose ferrules
  • Supports 40+ ferrule types for versatile applications
  • Optional square crimping jaws for superior crimp consistency
  • Fast, tool-free length adjustment reduces downtime
  • UL certified for global compliance and reliability
Specifications
  • Cross Section: 0.5 – 1.5 mm² / AWG 20-16
  • Crimp length: 6-12 mm
  • AWG: 20-16

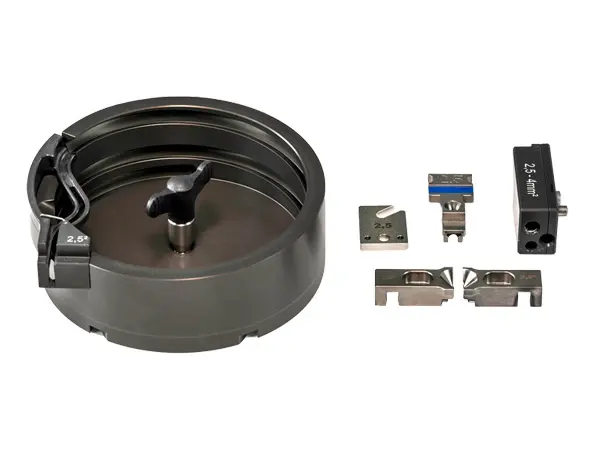

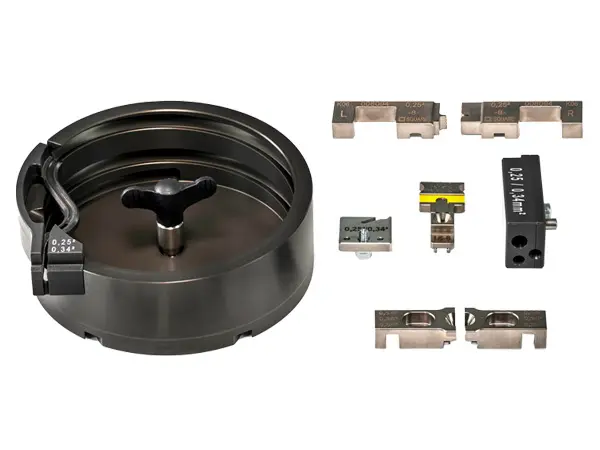

  • Tool kits: 0.25 mm² / 2.5 mm² / 4 mm²
  • Cycle time: 1.2 s
  • Speed up cycle time: 0.8 s
  • Power supply: 110 - 240 VAC / 50 - 60 Hz
  • Compressed air supply: 5.5 bar / 0.55 MPa
  • Dimensions: 21.7" L x 9.8" W x 16.2" H (500 x 250 x 412 mm)
  • Weight: 64 lb / 29 kg
