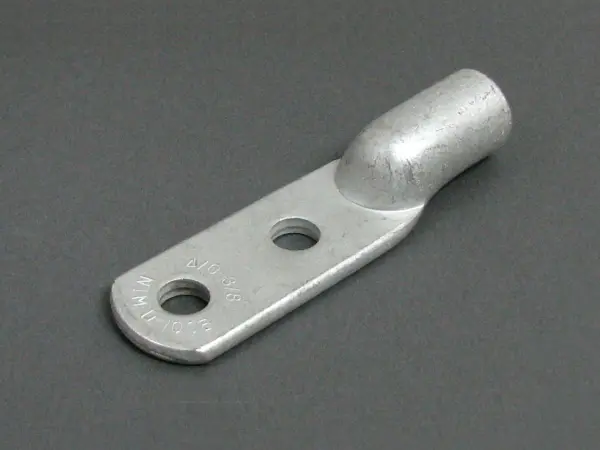

Tubular Terminals, Double Hole - Type B

(D 60-B)
0
Package Qty: 50
Quantity:

Features
  • Anti-vibration and anti-dust design.
  • Available without stud hole upon your request.
  • Crimp type
  • To crimp D 8-A & D 8-B requires optional dies for pneumatic crimping tool, NA 20.
Specifications
  • ød2: 11mm / 0.43"
  • B: 21.5mm / 0.85"
  • L: 88mm / 3.46"
  • S: 11mm / 0.43"
  • A: 32mm / 1.26"
  • G: 59mm / 2.32"
  • E: 29mm / 1.14"
  • øD: 15.3mm / 0.6"
  • ød: 11.4mm / 0.45"
  • Material: Copper
  • RoHS: RoHS 10
  • Wire Size Range for Stranded Wire (mmø|): 42.42-60.57
  • AWG: 1/0
