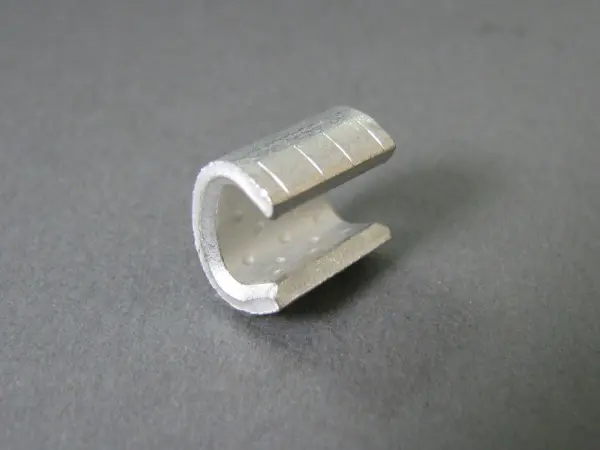

Clamp Connectors

(T 16)
0
Package Qty: 100
Quantity:

Features
  • Chamfered edges designed to protect the wire.
  • Dimpled or serrated to obtain high pull-out value.
  • Stamped lines show proper crimp dies position.

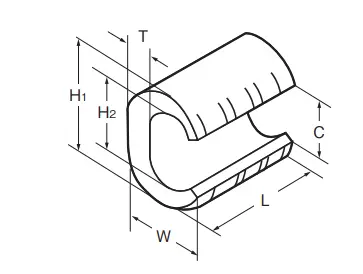

Specifications
  • C: 5mm / 0.2"
  • H2: 7.8mm / 0.31"
  • H1: 11.5mm / 0.45"
  • L: 13mm / 0.51"
  • W: 7.6mm / 0.3"
  • T: 2mm / 0.08"
  • RoHS: RoHS 10
  • Combinated Wire Range (mmø|): 11.50-16.00
