Shunt Wires - SD Type

(SD 14-L)
0
Package Qty: 1
Quantity:

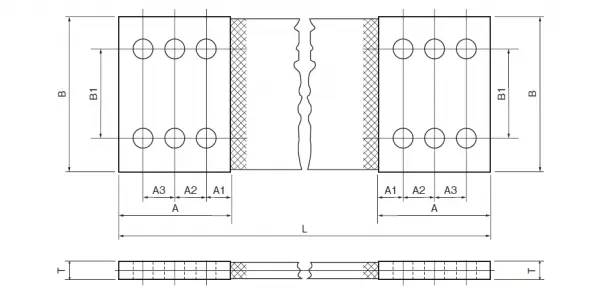

Specifications
  • Rated Current (A): 4100
  • Braided Wire Cross Sectional Area (mmø|): 2800
  • T: 33.5mm / 1.32"
  • ød: 18mm / 0.71"
  • L: 500mm / 19.69"
  • B: 150mm / 5.91"
  • B1: 100mm / 3.94"
  • A: 165mm / 6.5"
  • A1: 35mm / 1.38"
  • A2: 50mm / 1.97"
  • A3: 50mm / 1.97"
  • RoHS: RoHS 10
