Compression Terminals and Clamp Connectors
∕
Flexible Copper Braided Connectors
∕
SD Type
∕ Shunt Wires - SD Type

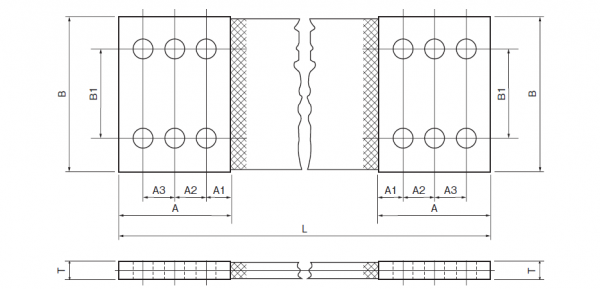

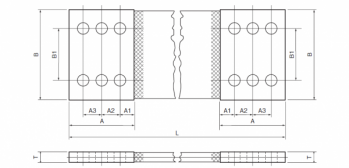

Shunt Wires - SD Type
(SD 3-L)
0
Package Qty: 1
Quantity:
Add to Quote
Specifications
Rated Current (A):
1460
Braided Wire Cross Sectional Area (mmø|):
400
T:
10mm / 0.39"
ød:
18mm / 0.71"
L:
500mm / 19.69"
B:
150mm / 5.91"
B1:
100mm / 3.94"
A:
165mm / 6.5"
A1:
35mm / 1.38"
A2:
50mm / 1.97"
A3:
50mm / 1.97"
RoHS:
RoHS 10
