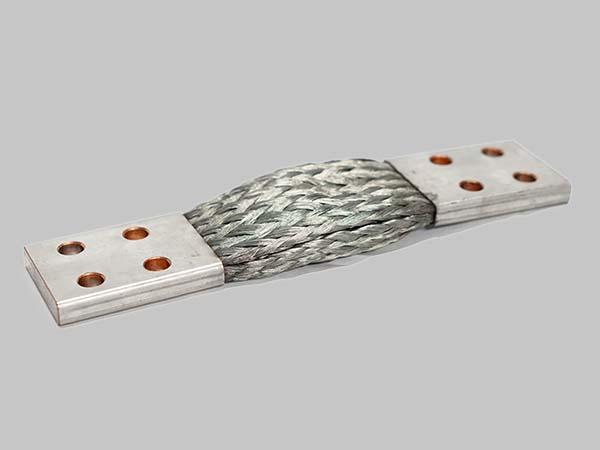

Shunt Wires - SC Type

(SC 6-L)
0
Package Qty: 1
Quantity:

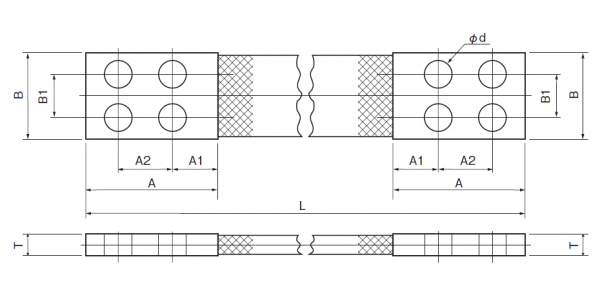

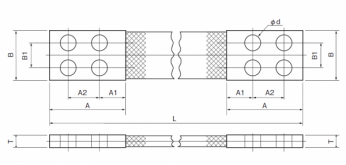

Specifications
  • Rated Current (A): 1240
  • Braided Wire Cross Sectional Area (mmø|): 500
  • T: 13.1mm / 0.52"
  • ød: 14mm / 0.55"
  • L: 350mm / 13.78"
  • B: 75mm / 2.95"
  • B1: 40mm / 1.57"
  • A: 95mm / 3.74"
  • A1: 30mm / 1.18"
  • A2: 40mm / 1.57"
  • RoHS: RoHS 10
