Shunt Wires - SB Type

(SB 12-L)
0
Package Qty: 1
Quantity:

Specifications
  • Rated Current (A): 1220
  • Braided Wire Cross Sectional Area (mmø|): 600

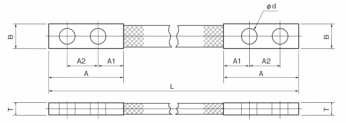

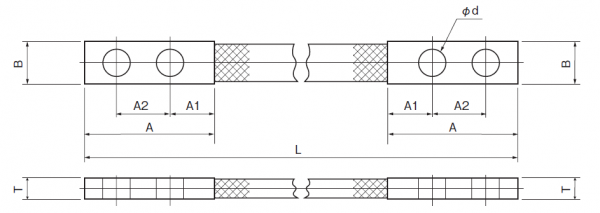

  • T: 19.3mm / 0.76"
  • ød: 14mm / 0.55"
  • L: 330mm / 12.99"
  • B: 50mm / 1.97"
  • A: 95mm / 3.74"
  • A1: 30mm / 1.18"
  • A2: 40mm / 1.57"
  • RoHS: RoHS 10
