Home ∕ Compression Terminals and Clamp Connectors ∕ Flexible Copper Braided Connectors ∕ SA Type ∕ Shunt Wires - SA Type

Shunt Wires - SA Type

(SA 4-L)
0
Package Qty: 1
Quantity:

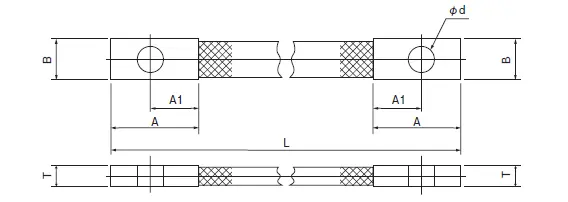

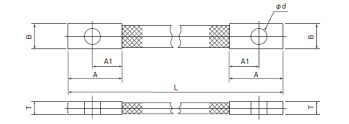

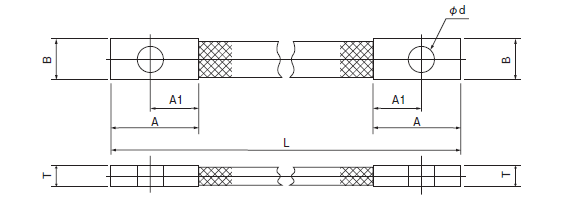

Specifications
  • Rated Current (A): 200
  • Braided Wire Cross Sectional Area (mmø|): 38
  • T: 4.2mm / 0.17"
  • ød: 12mm / 0.47"
  • L: 200mm / 7.87"
  • B: 25mm / 0.98"
  • A: 45mm / 1.77"
  • A1: 25mm / 0.98"
  • RoHS: RoHS 10
