Home ∕ Cable Accessories ∕ Insulation Caps ∕ Insulation Caps for Non-Insulated Terminals ∕ Insulation Cap for Terminals

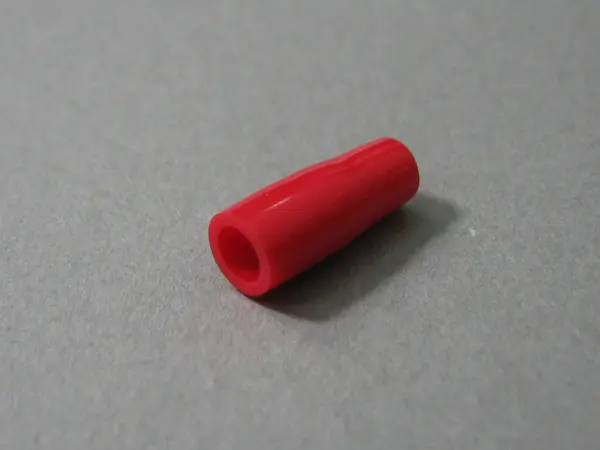

Insulation Cap for Terminals

(TIC 2-RED)
0
Package Qty: 1000
Quantity:

Specifications
  • ød1: 3.5mm / 0.14"
  • ød2: 4mm / 0.16"
  • ød3: 3.6mm / 0.14"
  • L: 14mm / 0.55"
  • L1: 7.5mm / 0.3"
  • L2: 6.5mm / 0.26"
  • T: 0.7mm / 0.03"
  • Applicable Terminal Nominal Size: 2mm / 0.08"
  • Material: P.V.C.
  • Rated Voltage: 600V
  • Rated Temperature (MAX): 140°F / 60°C
