Insulation Caps
∕
End Caps for Open End Connectors
∕ End Caps

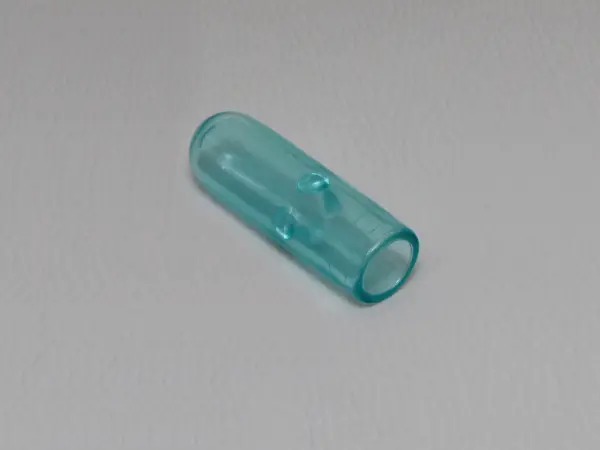

End Caps
(END V-L)
0
Package Qty: 250
Quantity:
Add to Quote
Features
Easy insulation Treatment
Good insulation performance
Translucent cap makes easy inspection
Specifications
Material:
P.V.C.
Minimum Installation Temperature:
32°F / 0°C
Rated Temperature (MAX):
140°F / 60°C
Withstand Voltage:
300V
Mating Connector:
E-M, E-L
Standard Color:
Green Translucent
RoHS:
RoHS 10

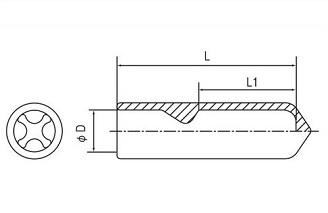

øD:
8.5mm / 0.33"
L:
34.5mm / 1.36"
L1:
(17.1mm / 0.67")
