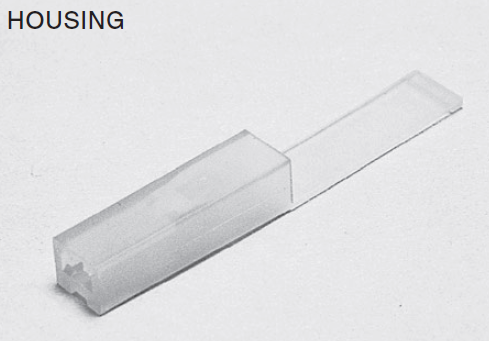

Easy Lock Connectors - 100 Series - Housing V2

(NET 1-28-1P-V2)
62.8
Package Qty: 500
Quantity:

Features
  • Locking Mechanism: Locking mechanism assures the safety of the connection by preventing withdrawal from vibration or wire tension.
  • Very Low Insertion Force: Very low insertion force is required to insert a mated tab. Operators can connect easily.
  • Very Low Withdrawal Force: As same as insertion, very low withdrawal force is required. Just squeeze to release the locking mechanism, and pull off the housing.
Specifications
  • RoHS: RoHS 10
  • Standards: CSA
  • Material (Housing): Nylon 66 (94V-2)
  • Rated Voltage / Current: AC 250V / 10A

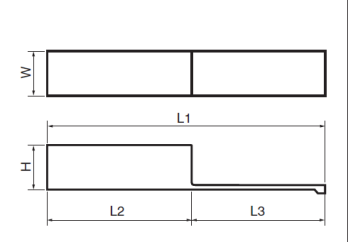

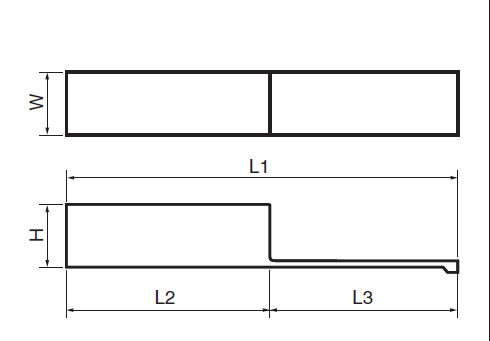

  • L3: 19mm / 0.75"
  • L2: 20mm / 0.79"
  • L1: 39mm / 1.54"
  • H: 5mm / 0.2"
  • W: 5.8mm / 0.23"
  • Pole: 1
  • Color: Blue Translucent
  • Applicable Terminals: OSS 62852-F3, CSS 62852-F3, OSS 62815-F3, CSS 62815-F3
  • Insulation Resistance: 1000M?
  • Withstand Voltage: AC2000V
  • Insulation Temperature: -40°F to 221°F (-40°C to 105°C)
