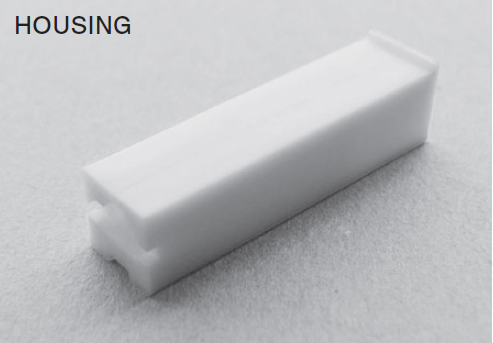

Easy Lock Connectors - 100 Series - Housing V0
(NEM 1-28-1P-V0)
93.45
Package Qty: 500
Quantity:
Add to Quote
Features
Locking mechanism assures the safety of the connection by preventing withdrawal from vibration or wire tension.
Very low insertion force is required to insert a mated tab. Operators can connect easily.
As same as insertion, very low withdrawal force is required. Just squeeze to release the locking mechanism, and pull off the housing.

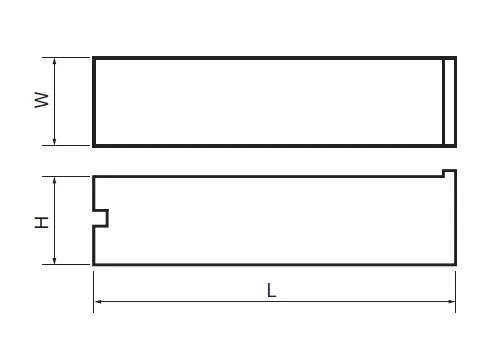

Specifications
W:
5.8mm / 0.23"
H:
5.4mm / 0.21"
L:
23mm / 0.91"
Pole:
1
Material (Housing):
Nylon 66 (94V-0)
Color:
White
Applicable Terminals:
OSS 62852-F3, CSS 62852-F3, OSS 62815-F3, CSS 62815-F3
Rated Voltage / Current:
AC 250V / 10A
Insulation Resistance:
1000MΩ
Withstand Voltage:
AC2000V
Insulation Temperature:
-40°F to 221°F (-40°C to 105°C)
Standards:
UL, CSA
RoHS:
RoHS 10
