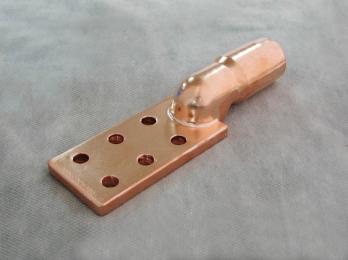

Compression Terminals - Special Larger Size

(C6-1400A-SN)
0
Package Qty: 1
Quantity:

Specifications
  • øD: 76mm / 2.99"
  • ød1: 46.7mm / 1.84"
  • E: 95mm / 3.74"
  • A: 200mm / 7.87"
  • A1: 30mm / 1.18"
  • A2: 50mm / 1.97"
  • A3: 50mm / 1.97"
  • B: 100mm / 3.94"
  • B1: 25mm / 0.98"
  • B2: 50mm / 1.97"
  • C: 20mm / 0.79"
  • ød2: 18mm / 0.71"
  • L: 365mm / 14.37"
  • H: 40mm / 1.57"
  • Bolt Size: M16x6
  • Applied Wire: Strand Outer Diameter: 45mm / 1.77"
  • Vertex Distance of Hexagonal Dies: 76
  • Material: Conductive face is tin lead plated
