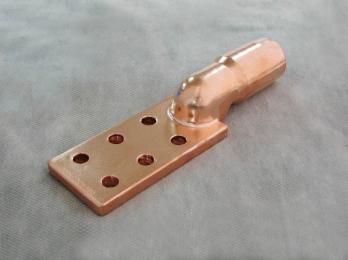

Compression Terminals - C6 Type

(C6-800)
0
Package Qty: 1
Quantity:

Specifications
  • øD: 56mm / 2.2"
  • ød1: 38mm / 1.5"
  • E: 90mm / 3.54"
  • A: 190mm / 7.48"
  • A1: 30mm / 1.18"
  • A2: 50mm / 1.97"
  • A3: 60mm / 2.36"
  • B: 100mm / 3.94"
  • B1: 25mm / 0.98"
  • B2: 50mm / 1.97"
  • C: 12mm / 0.47"
  • ød2: 18mm / 0.71"
  • L: 325mm / 12.8"
  • H: 30.5mm / 1.2"
  • Bolt Size: M16x6
  • Applied Wire: Strand Composition (Number of wires/mm): 127/2.8
  • Applied Wire: Strand Outer Diameter: 36.4mm / 1.43"
  • Vertex Distance of Hexagonal Dies: 56
  • Material: Conductive face is tin lead plated
