Compression Terminals - C6-C Type

(C6-600C)
0
Package Qty: 1
Quantity:

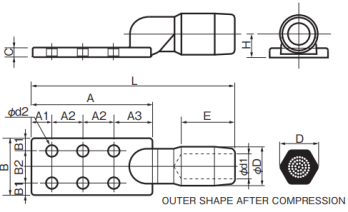

Specifications
  • øD: 51mm / 2.01"
  • ød1: 30.7mm / 1.21"
  • E: 70mm / 2.76"
  • A: 155mm / 6.1"
  • A1: 25mm / 0.98"
  • A2: 40mm / 1.57"
  • A3: 45mm / 1.77"
  • B: 75mm / 2.95"
  • B1: 17.5mm / 0.69"
  • Applied Wire: Strand Outer Diameter: 29.5mm / 1.16"
