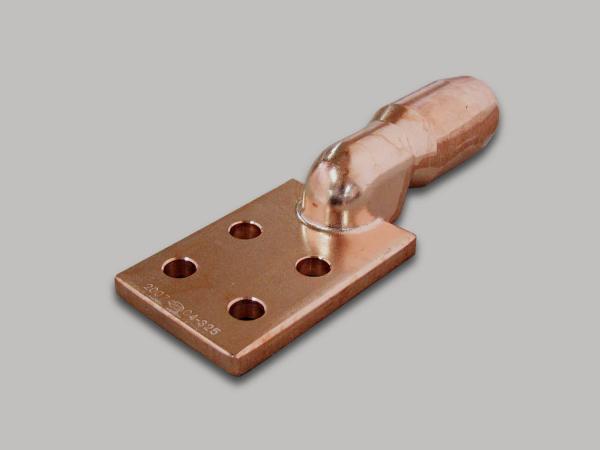

Compression Terminals - C4 Type

(C4-100)
0
Package Qty: 3
Quantity:

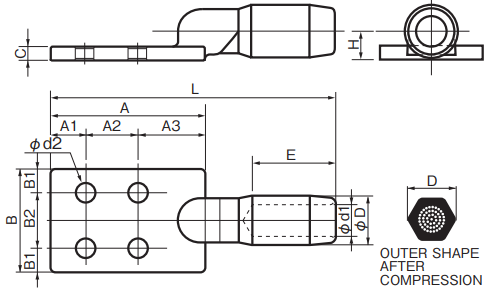

Specifications
  • øD: 23mm / 0.91"
  • ød1: 13.6mm / 0.54"
  • E: 39mm / 1.54"
  • A: 115mm / 4.53"
  • A1: 25mm / 0.98"
  • A2: 40mm / 1.57"
  • A3: 50mm / 1.97"
  • B: 75mm / 2.95"
  • B1: 17.4mm / 0.69"
  • B2: 40mm / 1.57"
  • C: 10mm / 0.39"
  • ød2: 14mm / 0.55"
  • L: 180mm / 7.09"
  • H: 13mm / 0.51"
  • Bolt Size: M12x4
  • Applied Wire: Strand Composition (Number of wires/mm): 19/2.6
  • Applied Wire: Strand Outer Diameter: 13mm / 0.51"
  • Vertex Distance of Hexagonal Dies: 23
  • Material: Conductive face is tin lead plated
